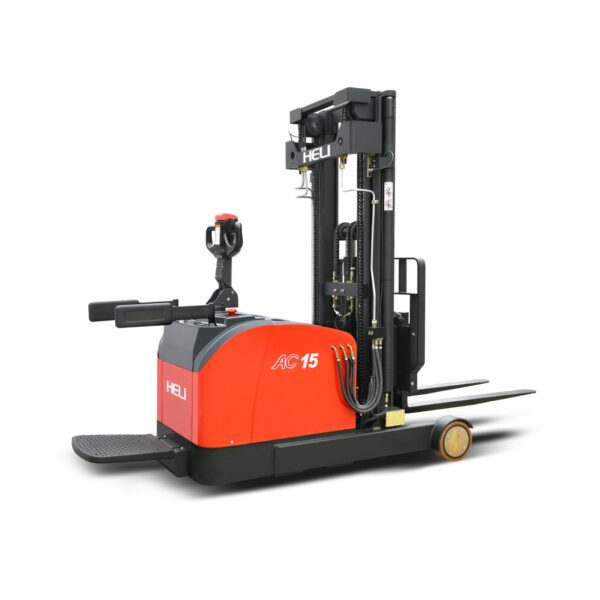

Heli Electric Pallet Reach Stacker 1.5T CQDM15 La

The Heli CQDM15 La model represents the pinnacle of pallet stacking versatility, featuring innovative scissor reach mechanisms. This design allows for extended reach into racking, facilitating double-deep storage or retrieval directly from vehicles. The inclusion of straddle arms enhances stability during lifting, while the unique moonwalk handle ensures precise, linear movement. This reach stacker combines flexibility, stability, and safety, making it an ideal choice for varied and demanding pallet stacking tasks.

Features:

  • Scissor reaching arms enable double-deep storage or retrieval, adding a layer of versatility to pallet handling.
  • Straddle arms augment stability during the lifting process, ensuring secure operation.
  • Equipped with a moonwalk handle for straight-line movement, enhancing manoeuvrability and precision.
  • Double oil cylinder design facilitates smooth mast tilt, increasing safety when accessing high racks.
  • Incorporates regenerative braking to extend operational run times, maximising efficiency.
  • Features auto deceleration during turns for heightened stability and step-less speed control for refined operation under load.
  • Emergency belly button prevents operator entrapment, promoting workplace safety.

Specifications:

  • Model Reference: CQDM15 La
  • Series: G Series
  • Configuration Number: 810 – La
  • Load Capacity: 1.5 T
  • Mast Height: 4.5 metres
  • Load Centre: 500 mm
  • Operator Type: Walkie/Stand-on
  • Tyre Type: Solid
  • Max Travel Speed (Loaded/Unloaded): 5/5.5 KM/H
  • Battery: Standard battery
  • Container Compatible: No
  • Aisle Working Width: 1083x2440x2040 mm
